1.Basic Information
| Item | Specification |
|---|---|
| Part Number | WG9719230023 |
| Product Name | Clutch Master Cylinder/ Clutch Master Pump |
| Core Material | Cast Iron Body + High-temp Rubber Seals |
| Function | Hydraulic power transmission for clutch control system |
| طلب | Heavy-duty truck hydraulic clutch assembly |
| Warranty | 12 Months |
| موك | 1 قطعة |
| Package | Export standard carton packaging |
2.Product Introduction

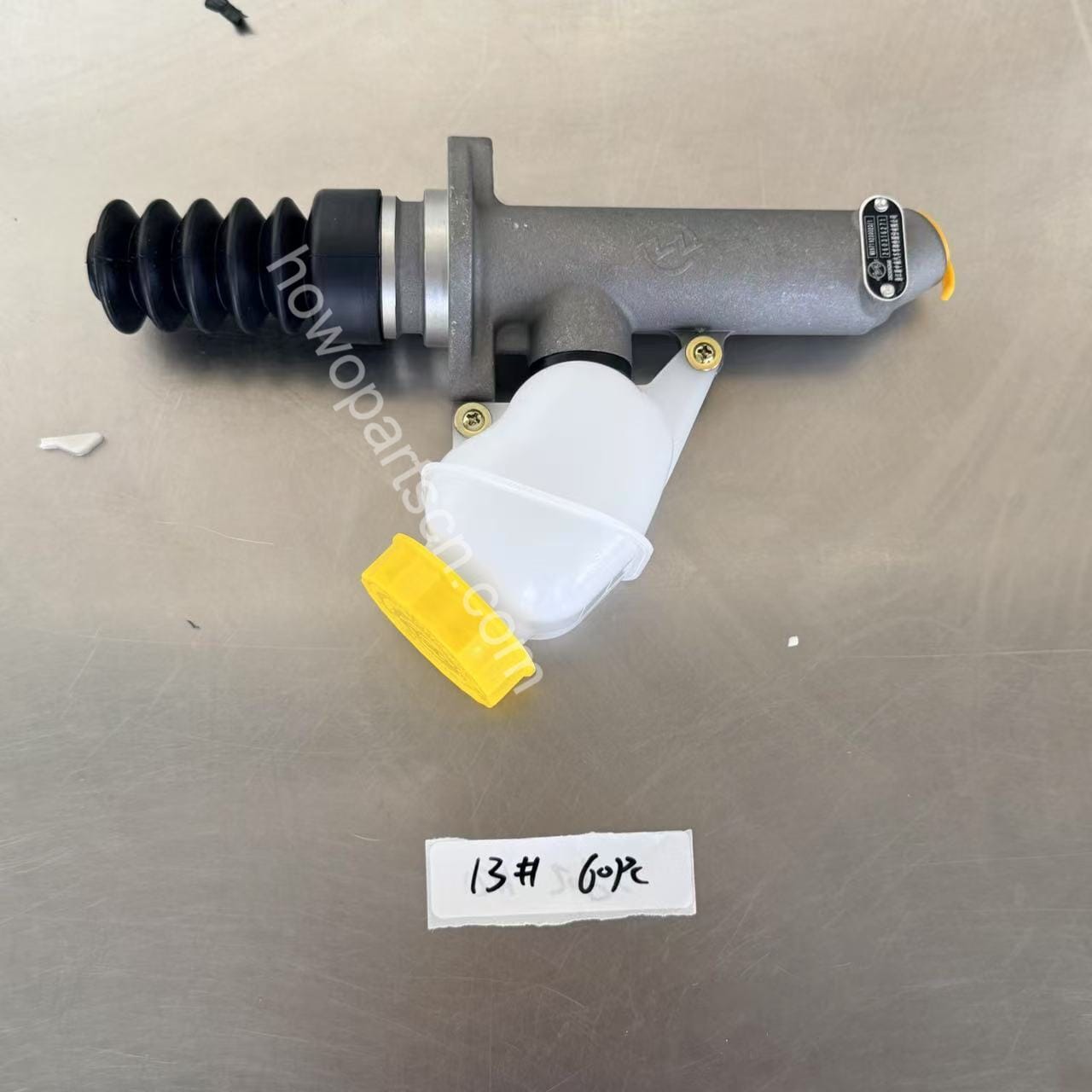

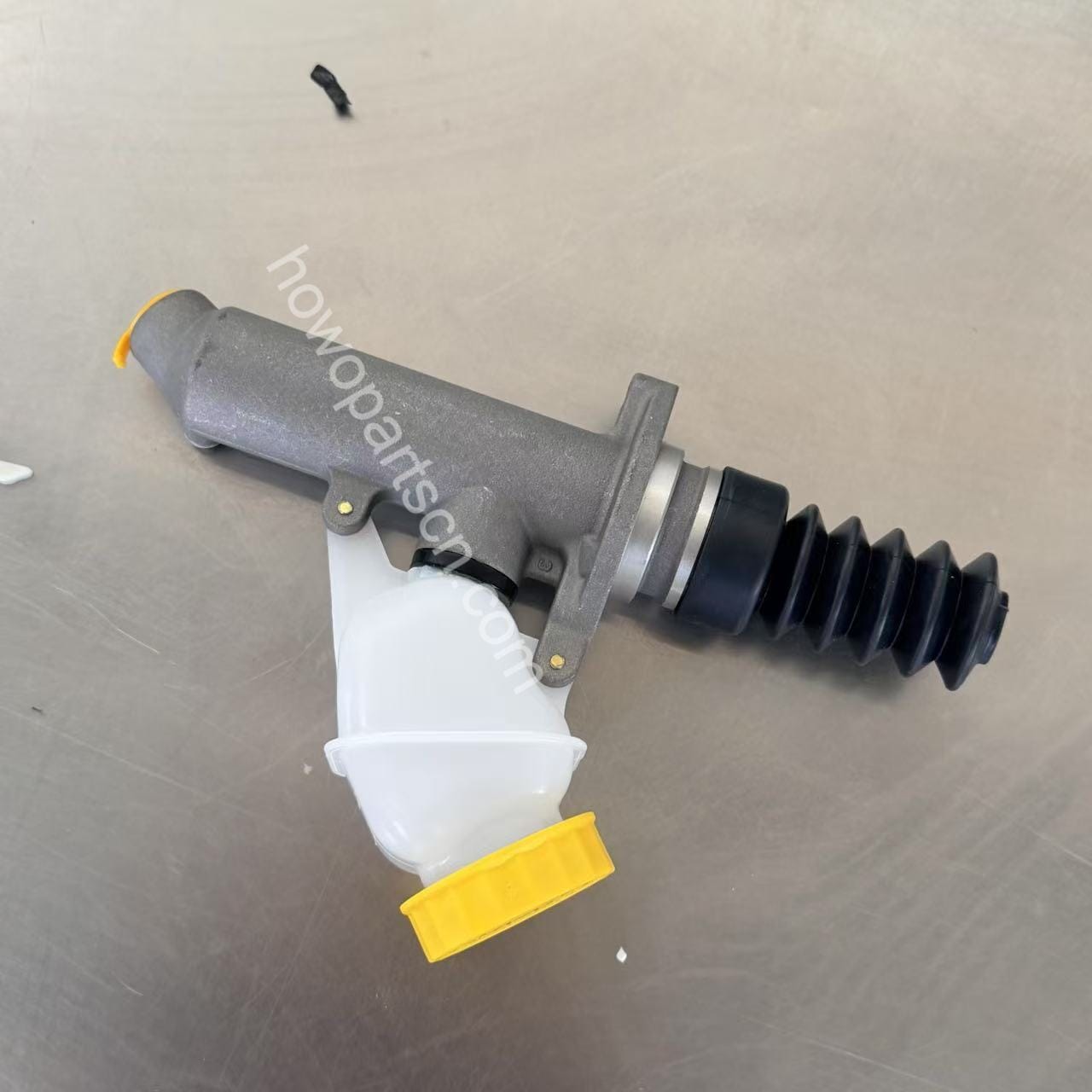

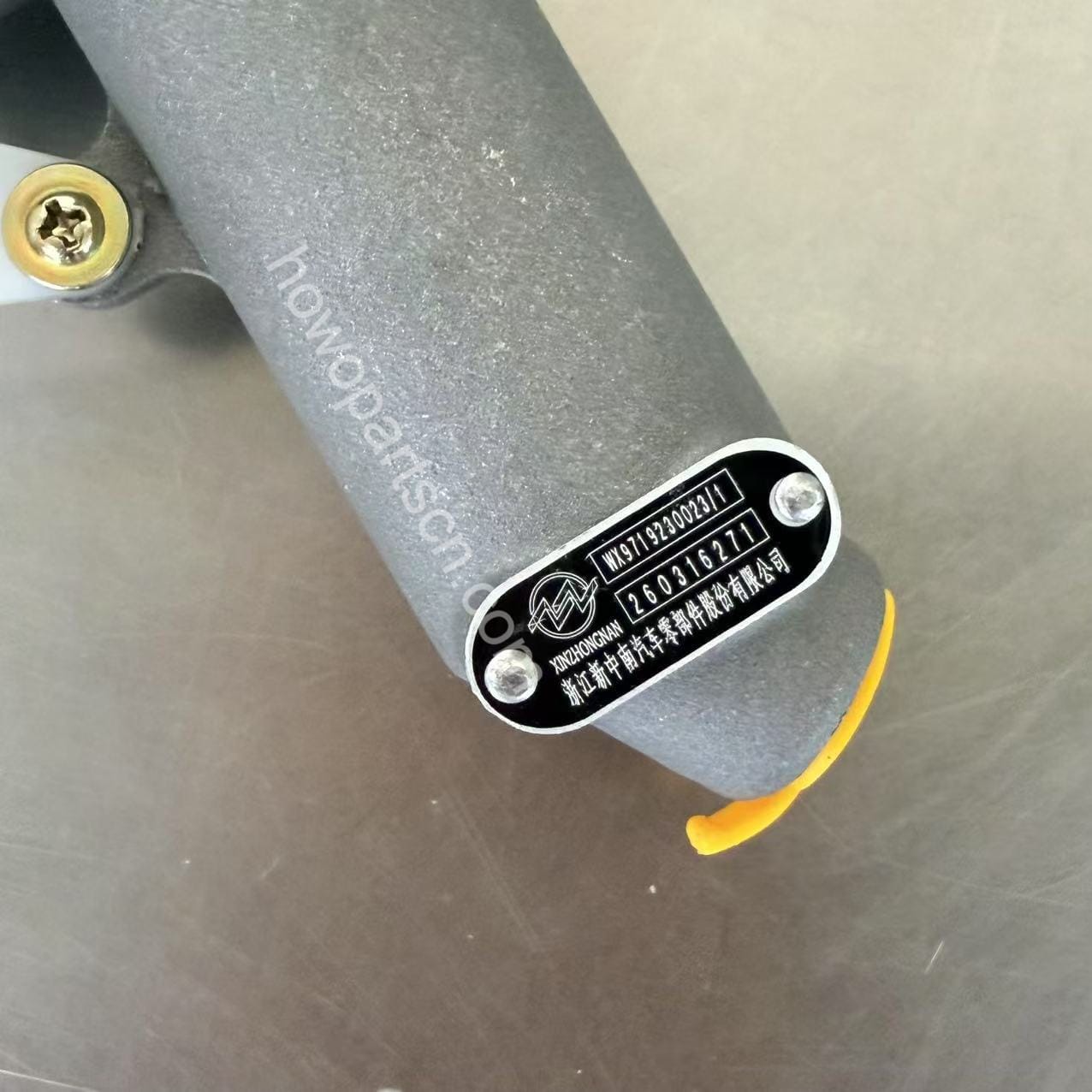

This WG9719230023 clutch master cylinder is the core hydraulic control component of vehicle clutch system. Connected with clutch pedal and slave cylinder via hydraulic pipeline, it turns driver’s foot pedal motion into stable hydraulic pressure.
When stepping on clutch pedal, internal piston pushes brake fluid to build up pressure, which transmits to clutch slave cylinder to separate clutch disc smoothly, realizing gear shift operation for heavy vehicles. Stable hydraulic output is essential for smooth driving and normal gear shifting.
3.Key Product Advantages
① Precise Internal Piston Matching
Precision machined inner cylinder and matched piston ensure tight fit, effectively avoiding internal fluid leakage that leads to soft clutch pedal or incomplete separation failure.
② High-temperature Resistant Rubber Seals
Adopt oil-resistant composite rubber sealing rings, anti-expansion and anti-aging under long-term high-temperature and hydraulic working condition, extend service life in harsh working environment.
③ Integrated Cast Iron Housing
Solid cast iron main body features strong compression resistance and anti-deformation performance, suitable for frequent start-stop and bumpy road transportation scenarios.
④ Direct Installation Replacement
Strict dimensional control matches standard mounting position, no extra modification required during maintenance replacement, greatly shorten vehicle repair time.
⑤ Factory Pressure Inspection
Every finished part passes hydraulic leakage test before delivery to eliminate hidden troubles of oil leakage and insufficient pressure.
4.Application Range
Fit for various heavy cargo trucks and dump trucks equipped with matched hydraulic clutch structure, widely stocked for global repair shops and fleet maintenance wholesale business.
